Non-Draining Turbine Mechanically Pumped Type Balanced Proportioning Equipment Php100 6%

Non-Draining Turbine Mechanically Pumped Type Balanced Proportioning Equipment Php100 6%
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model NO.: PHP100(6%)
Power Source: Mechanically Pumped Type
Rated Working Pressure: 1.2MPa
Pressure Range: 0.6~1.6MPa
Pressure Loss: ≤0.2MPa
Rated Flow: 100L/S
Flow Range: 16~100L/S
Inlet and Outlet Pipe Diameter: DN200
Foam Inlet Pipe Diameter: DN80
Weight: 800kg
Transport Package: Wooden Package
Specification: PHP100(6%)
Trademark: Ying Sui
Origin: China
Agent: Foam
Type: Fire Extinguisher
Object: Class B Fires
Size: Php100(6%)
Сертификация: CCC, CE
Portable Extinguisher: Mechanically Pumped Type Balanced Proportioner
Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa
Customization: Available | Customized Request
Основная информация
Оплата и доставка Условия
Характер продукции

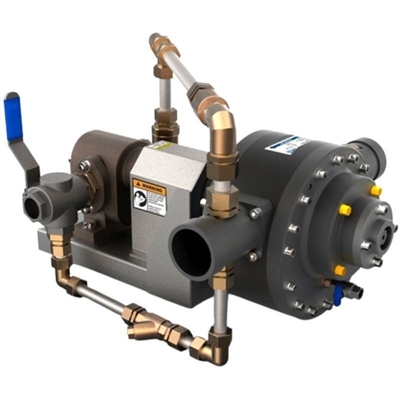

            Non-draining turbine Mechanically pumped type balanced proportioning equipment
The mixing process of mechanical pumping is to use a non-draining turbine to drive the foam pump to inject the foam into the pressure water. When the water in the main pipeline appears different working conditions due to the change of pressure and flow, the turbine correspondingly appears different speed, so that the amount of foam extracted by the pump is adjusted in real time, so as to continuously configure the precise mixing ratio of foam mixture.
It has the characteristics of energy saving, precise mixing ratio, space saving, easy operation and high integration degree.
Item PHP43(3%)-S/C PHP100(3%) PHP100(6%) PHP175(3%) PHP200(3%) PHP420(3%)
Rated working pressure (MPa) 1.2
Pressure range (MPa) 0.6~1.2 0.6~1.5 0.6~1.6
Pressure loss (MPa) ≤0.2 ≤0.3 ≤0.2
Mixture ratio 3% 6% 3%
Rated flow (L/s) 43 100 100 175 200 420
Flow range (L/s) 12~43 14~100 16~100 10~175 32~200 40~420
Inlet and outlet pipe diameter DN100 DN200 DN250 DN350
Foam inlet pipe diameter DN40 DN80 DN100
Weight (Kg) 600 800 800 1050 1200 1500
